[FIXED] – M.2 SSD Not Showing Up on Windows 11 PC

SSDs are preferred due to their compact size and fast read/write speeds. Compared to mechanical drives, they are more reliable, as they don’t have any moving parts, making them an ideal storage solution for laptops and portable storage media.

However, like any other storage drive, SSDs too are prone to various errors. TheM.2 SSD not showing up on Windows 11PC is a unique issue that hinders your work and renders data inaccessible. Let’s learn more about this issue in detail.

What Causes the M.2 SSD to Not Show Up on Windows 11 PC?

When we connect an SSD or any other storage device to our computer, the computer detects it and displays it in Windows Explorer. The storage drive is also visible in Disk Management. Sometimes, however, the SSD doesn’t appear in Windows Explorer, Disk Management, or even in the BIOS.

Here are some possible reasons that can cause your M.2 SSD to not show up when connected to Windows PC –

• Faulty M.2 slot
• Connection issues
• SSD not initialized/partitioned
• Incompatible/outdated storage controller drivers
• Improper configuration in BIOS
• SSD might be a member of storage pool inStorage Spaces
• Faulty Storage drive

Methods to Fix the M.2 SSD Not Showing Up on Windows 11 PC

Now that you know what causes this issue, let’s look at some methods to fix it.

Pre Activity:

Before moving on to the methods, we would recommend checking theM.2 SATAcable that connects your SSD with the motherboard for any damage or loose connection. If you are using anM.2 NVMe SSD,确保SSD坐在港口和that the holding screw is fastened properly.

You can also test the M.2 SSD on another PC to rule out any hardware issues.

Once these checks are done, proceed with the methods below to fix this issue.

Method 1: Initialize the Drive & Assign it a Letter

If you have connected a brand new M.2 SSD with your computer, but the drive is not initialized, your SSD might not show in Windows Explorer. You need to first initialize the drive and assign a letter to make it visible in Windows Explorer. Here are the steps –

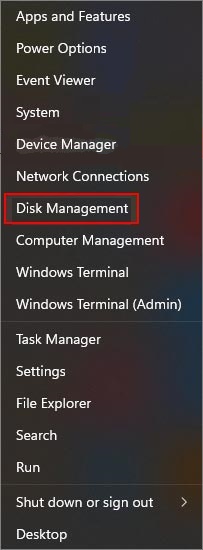

• PressWINDOWS + Xand click onDisk Managementfrom the list.

• Locate your M.2 SSD and right-click on it.

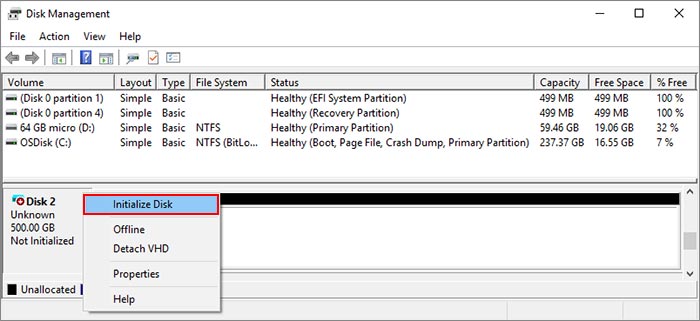

• Click onInitialize Disk.

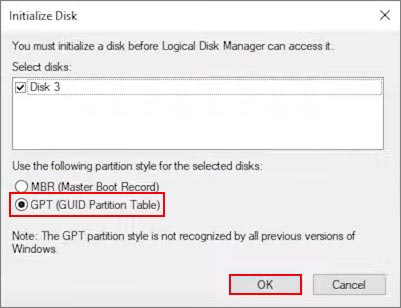

• A window will pop up. Select the partition style you want for the selected drive and clickOK.

The M.2 drive is now initialized. However, it still needs to be allocated and visible in Windows Explorer. Hence, it will require a drive letter. To do this –

• Locate the unallocated M.2 SSD and right-click on it.

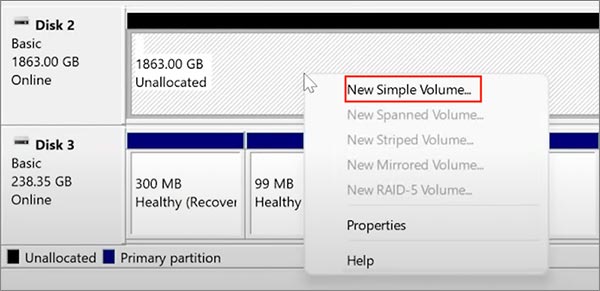

• Click onNew Simple Volume.

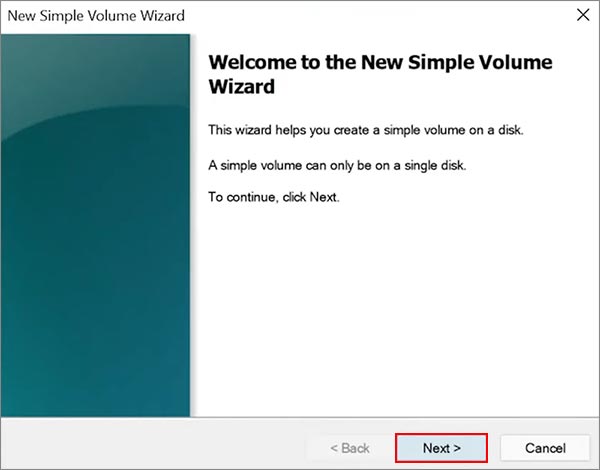

• You will see theNew Simple Volume WizardClick onNext.

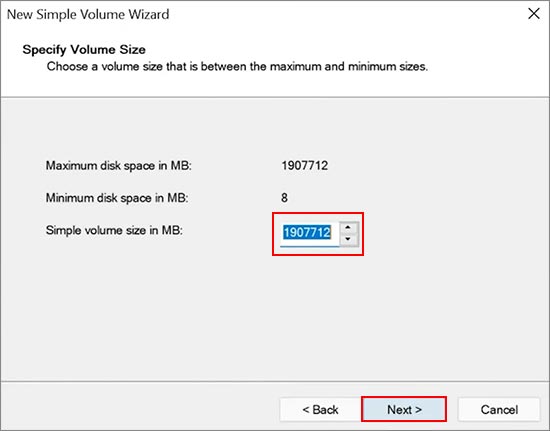

• In the next window, enter the desired size of the drive and clickNext.

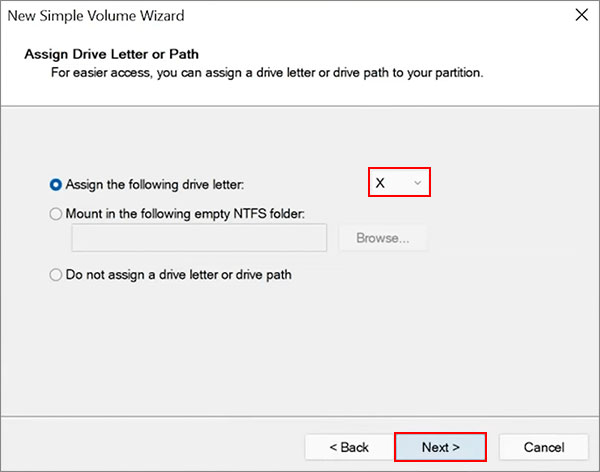

• Now, the wizard will ask you toassign a letterto the M.2 SSD. Type in the letter and click onNext.

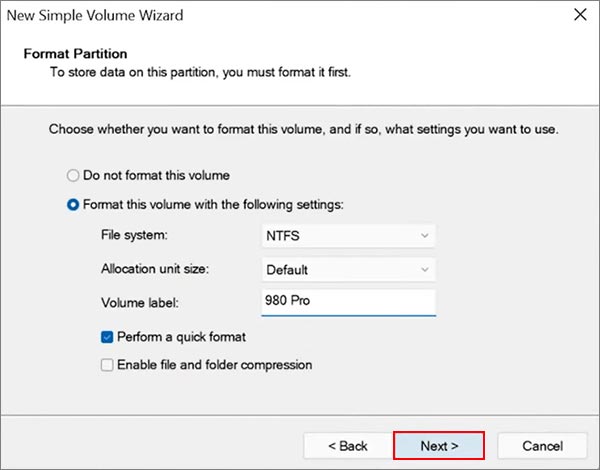

• In theFormat Partitionwindow, select the ‘Format this volume with the following settings’ option and then choose theFile System,Allocation unit size,andVolume label.
• Choose thePerform a quick formatoption and click onNext.

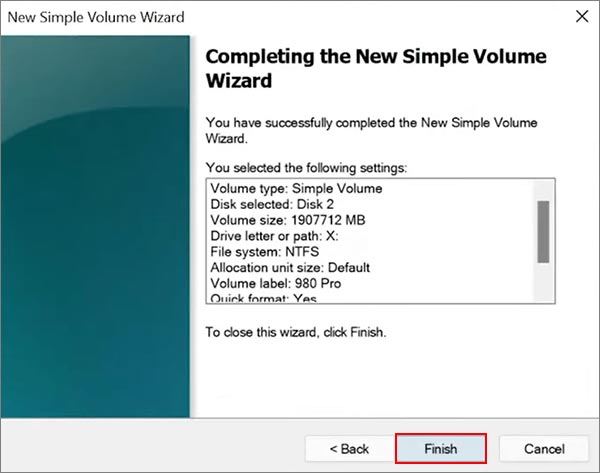

• In the last window, click onNextand proceed with formatting the drive. This will format the drive and make it ready for use. Now your M.2 SSD will show up in Windows Explorer.

Method 2: Update Storage Controller Drivers

We all know that using outdated device drivers can cause the device to malfunction. This could be why the M.2 SSD is not showing up in Windows Explorer on your Windows 11 PC.

Here’s how you can update the drivers to resolve this issue.

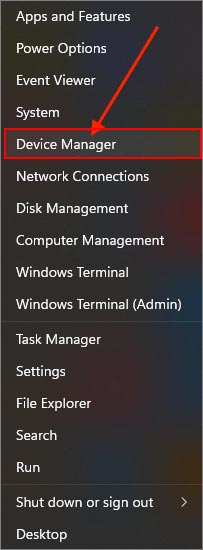

• PressWINDOWS + Xand click onDevice Manager.

• LocateStorage Controllerand expand it.

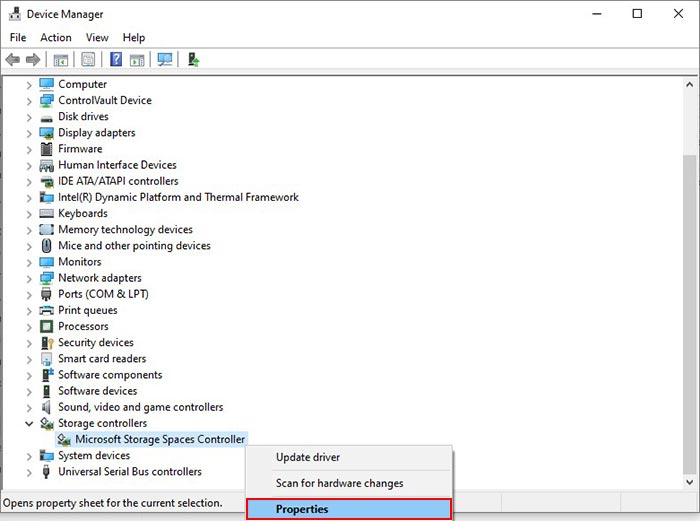

• Right-click on the entry under it and click onProperties.

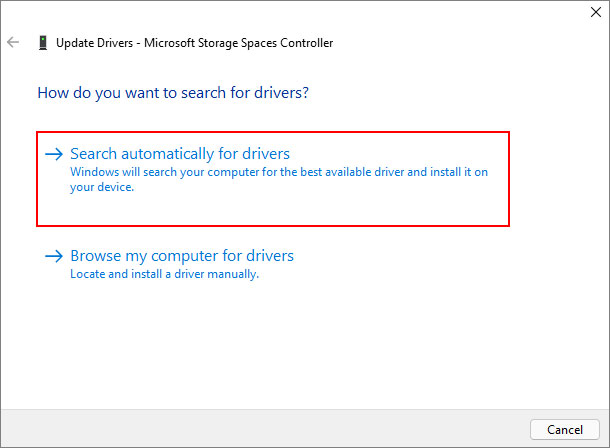

• Go to theDrivertab and click onUpdate Driver.
• Follow the steps as prompted by the wizard.

• Restart your computer.

Method 3: Run Hardware and Devices Troubleshooter

If you cannot see the connected M.2 SSD or NVMe drive in Windows Explorer or Disk Management, there might be some fault with the storage drive. You can run theHardware and Devices TroubleshooterusingCMDto identify and fix the exact cause. Here’s what to do –

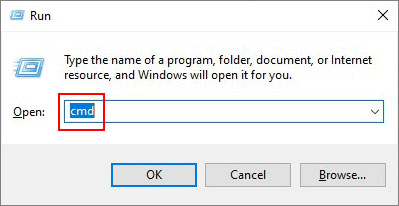

• PressWINDOWS + Rand typecmd. PressCTRL + SHIFT + ENTERto open it with administrator privileges.

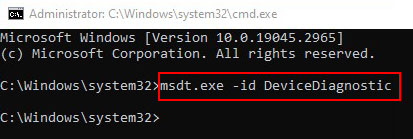

• Type the following command –exe –id DeviceDiagnosticand pressEnter.

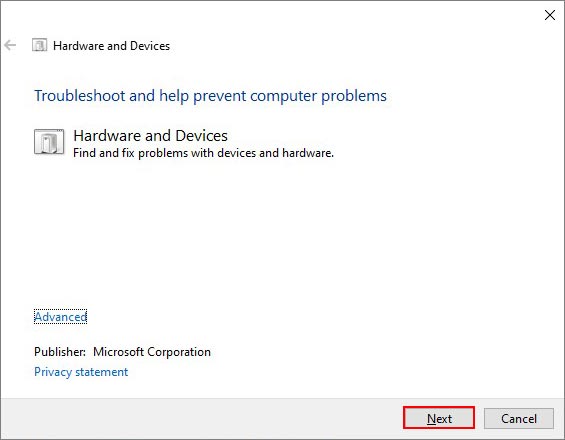

• It will open theHardware and Devices troubleshooter.
• Click onNext.

• Let the wizard detect the issues. If it displays any issues, click on them one by one and follow the steps as prompted to troubleshoot them.
• Restart your computer.

Method 4: Reconfigure the Inaccessible M.2 SSD in BIOS

In some cases, you can’t see the M.2 SSD on your Windows 11 PC or even in the BIOS due to improper SATA configuration. If your SSD is not configured with the right SATA controller settings, you might encounter this issue frequently. Here, you must go into the BIOS and alter the settings. Carefully follow the steps mentioned below –

• 重新启动Windows 11计算机和继续施压theF2key or any other key to enter the system BIOS.
• Locate theAdvancedtab and click on it.

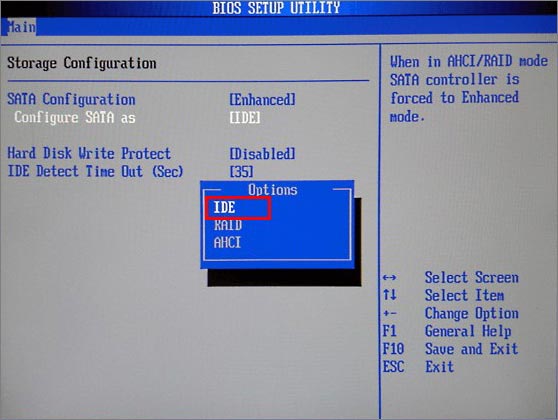

• Navigate to theSATA Controller mode/SATA Configuration.

• ChooseIDEfrom the options.
• PressF8to save and exit.

How to Recover Data from an M.2 SSD Not Showing Up on Windows PC?

Not being able to access your data due to such errors can be quite frustrating. The methods mentioned in this post should help you fix this issue and make your M.2 SSD visible on your Windows 11 PC. However, if none of the methods work, simply download aprofessional data recovery softwareand retrieve your data first.

Note–Data recovery from an M.2 SSD is only possible if the TRIM command is disabled. If not, then you won’t be able to recover your files successfully.

UsingStellar Data Recovery Professional, you can easilyrecover lost filesfrom any storage device. You can also use it to perform data recovery on inaccessible storage drives. Follow ourguide to retrieve your dataeasily using the software.

Final Words

In this post, we discussed the causes behind inaccessible M.2 SSD and why it is not showing up on your computer. We hope the methods above methods helped make your SSD visible on Windows Explorer.
