Stellar Reporter & Auditor for Exchange Server/3. Getting Started/3.6. Login Information and User Interface
Stellar Reporter & Auditor for Exchange Serveris a web-based analysis and reporting solution for MS Exchange Servers. It has a very easy to use graphical user interface.

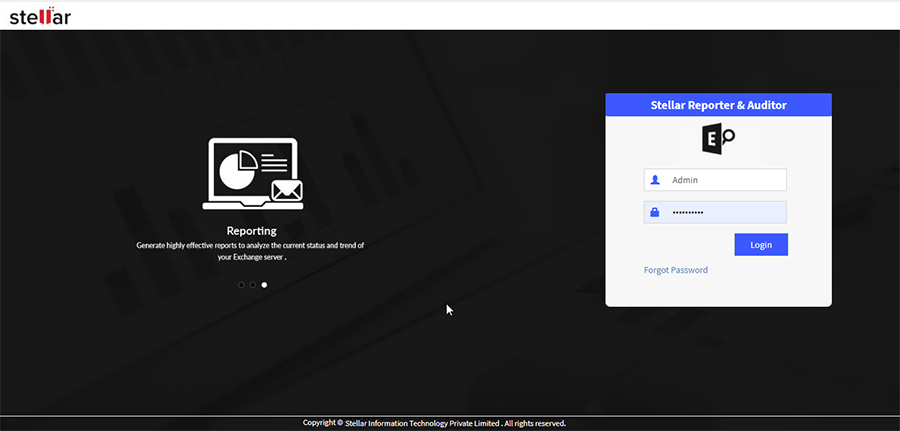

After launching the program for the first time, you will see the following login screen:
1. In the login window, enter the 'Username' and 'Password' in respective fields and clickLogin.
Note:The default Username isAdminand default password will be sent to theEmail Identered by you and you can login with that password.
2. When you login for the first time you are forced to change the password. The following dialog box appears, clickOKto change the password.
3. AChange Passwordwindow is displayed as shown below:
4. Enter theCurrent Password,New Password,Confirm Passwordand clickSave Changesto change the password.
5. Now login again using the sameUsernameandNew Password.
Note:If you forget the password then clickForgot Passwordin the Login window. AForgot Passworddialog box appears as shown below:
Enter theUsernameandEmail idand clickReset.
A default password will be sent to your registeredEmail Id. You can login with that password.
To access the main user interface, you need to add server details in the next step. Go to theAdd Serversection of this manual, to know how to add the server details.
When you successfully add the server details, the Main User Interface window will be displayed:
The Main User Interface consist of welcome Admin page it has several information about the MS Exchange Server:
Shows number of alerts (if any) with respect to their category : Critical, Trouble, Attention. To learn more about the alerts, clickhere.
Shows a graphical representation of server by its storage size (GB) and volume occupancy like how much volume have been used and how much is left.
Shows a graphical representation of mailbox size (GB) and mailbox store.
Shows a graphical representation of top 10 mailboxes by mailbox size (GB) and name.
Shows a graphical representation of yesterday's internal and external mails sent in an organization.
The user interface containsNavigation PaneandButtonsthat let you access various features of the software with ease.
To logout of the software, click onLogoutbuttonfrom theMenubar.
